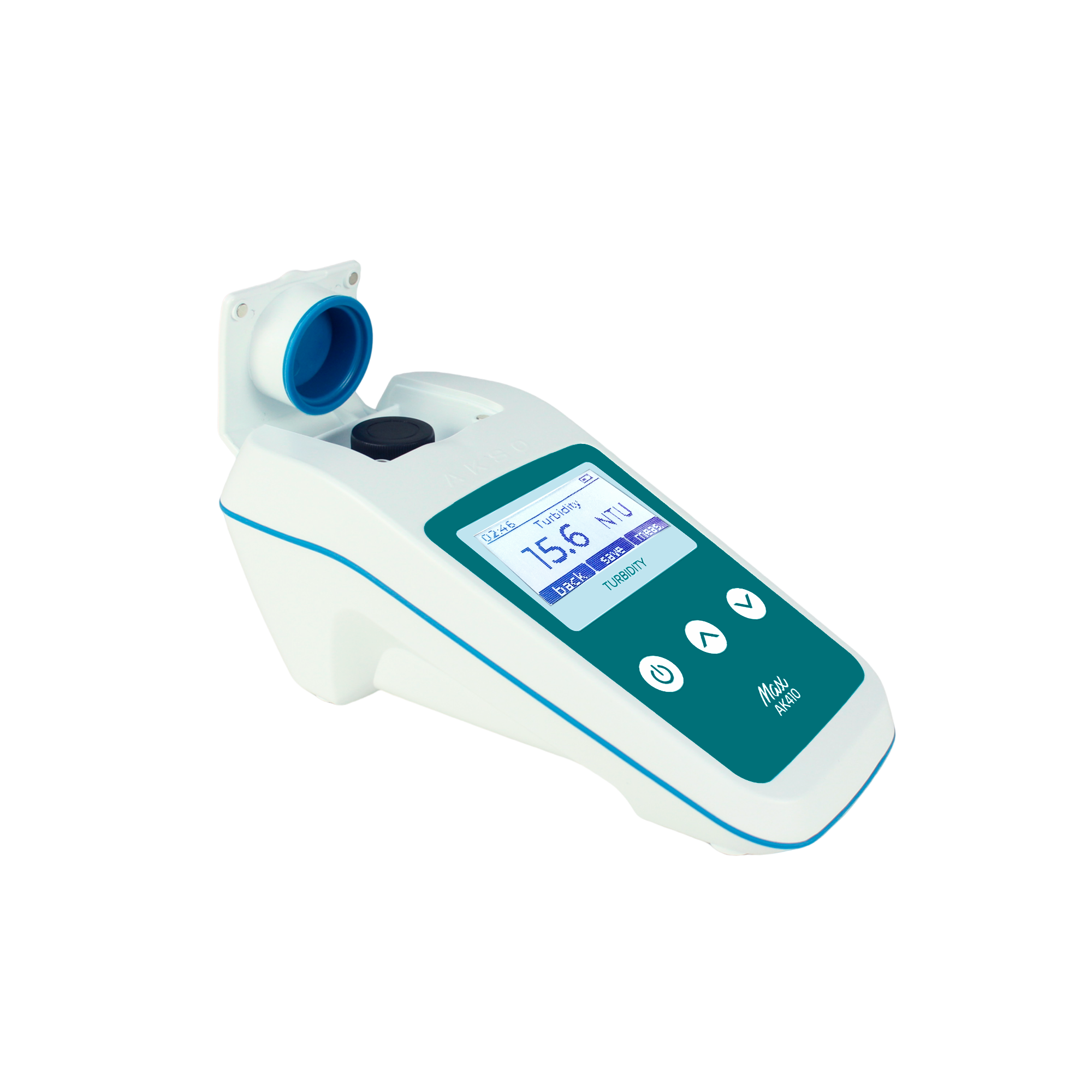

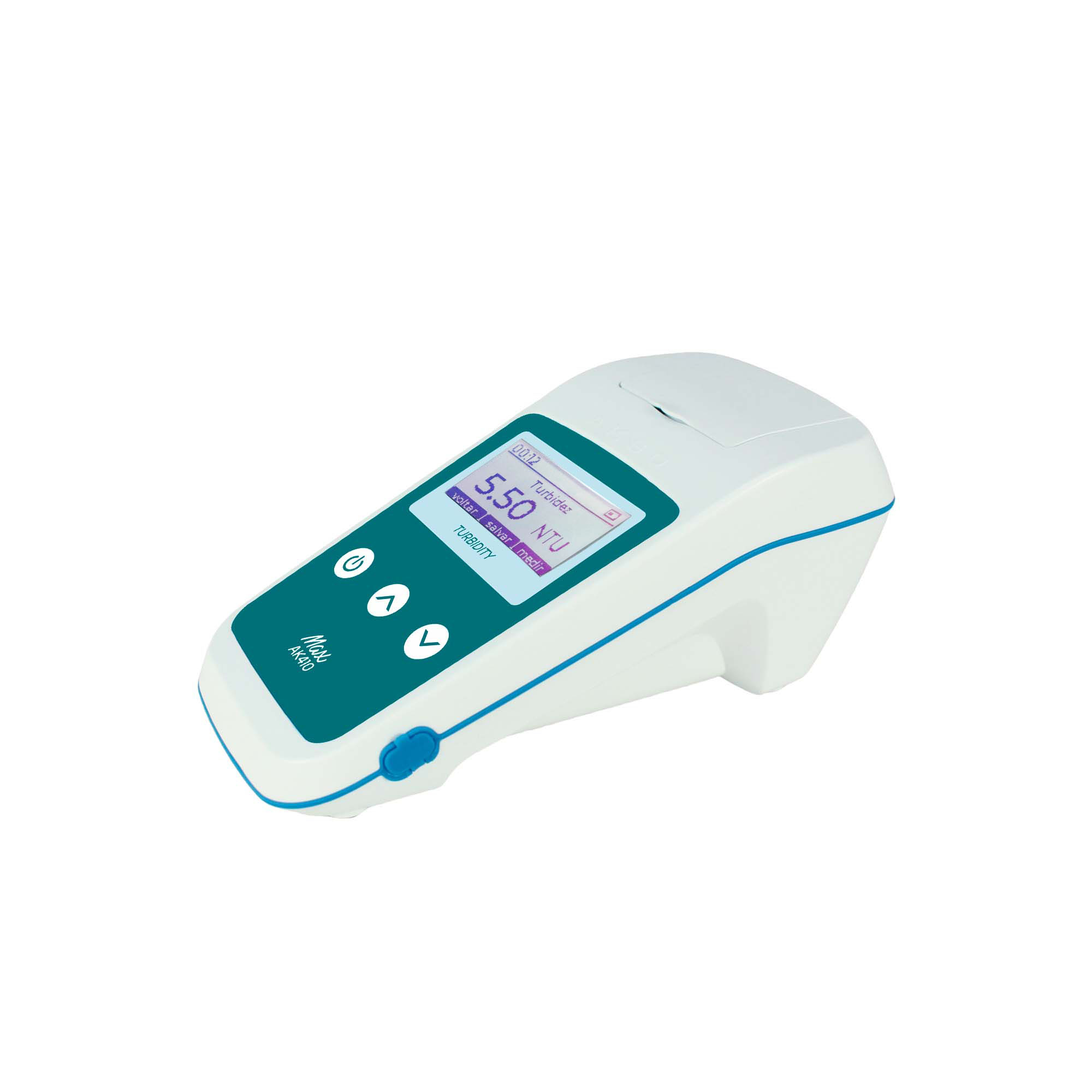

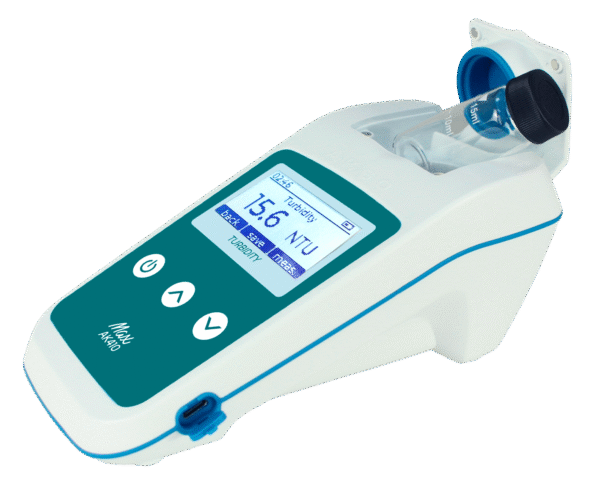

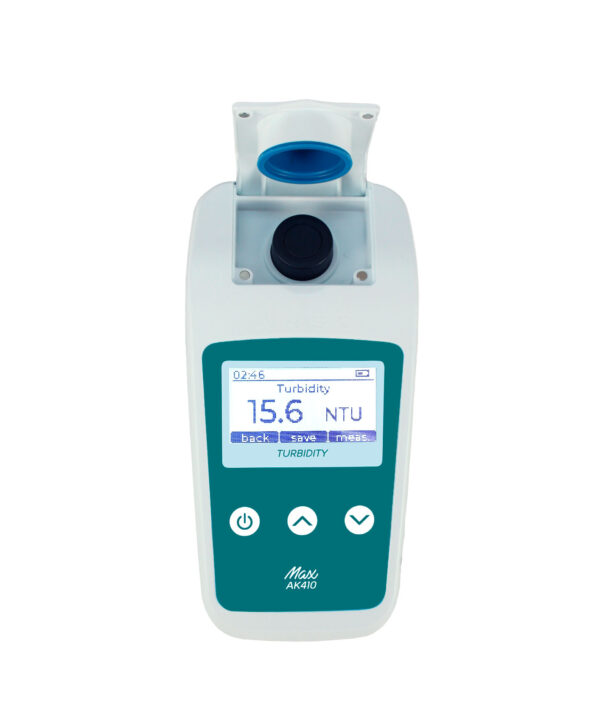

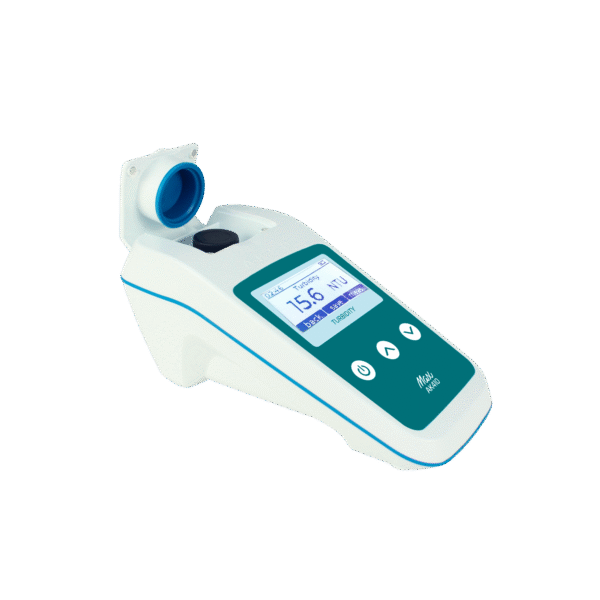

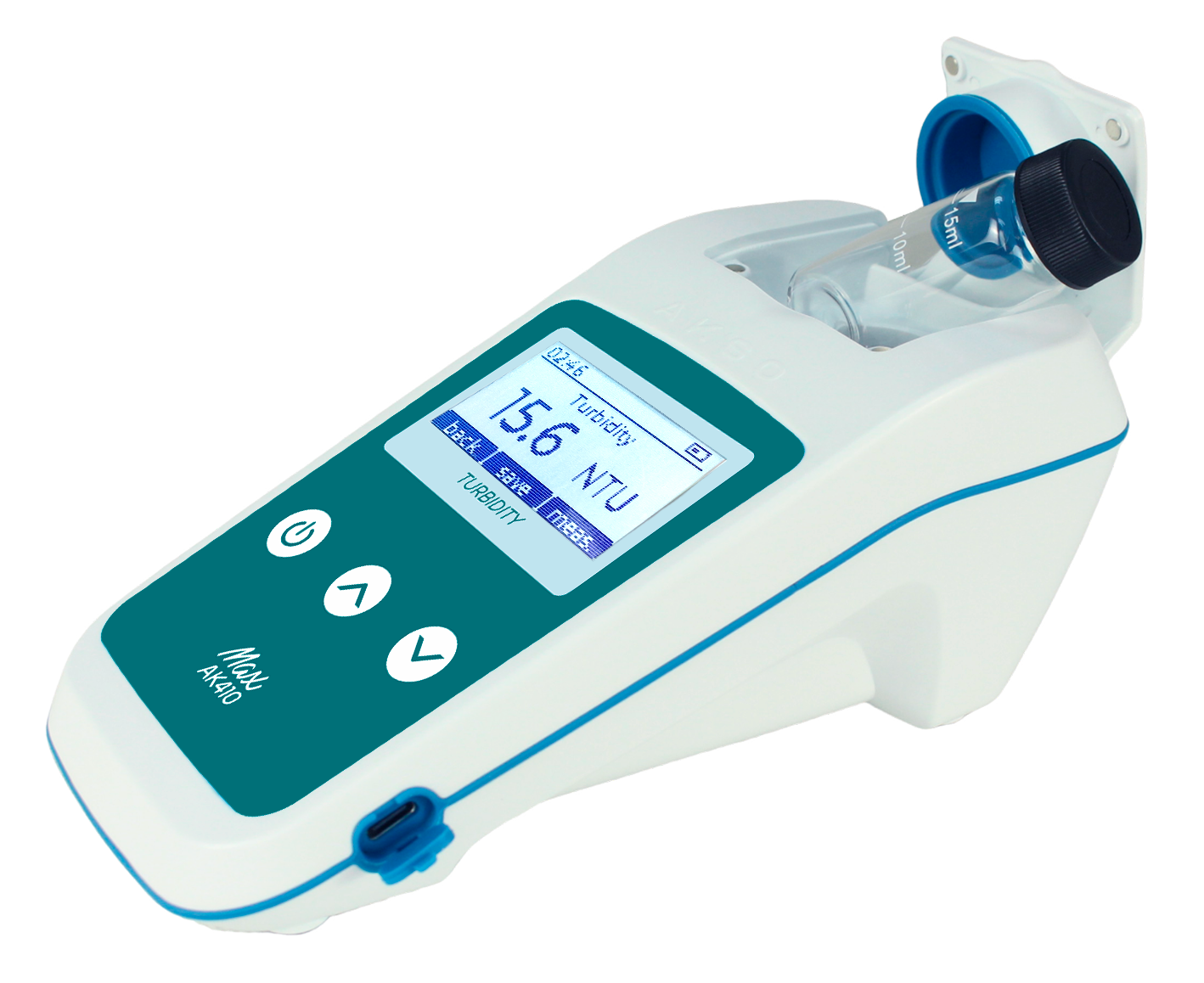

AK410 MAX

Developed and manufactured by Akso, the Max line of portable photometers is ideal for those looking for practical measurements.

As well as having a modern design and an adjustable backlit display, the Max line meters have a date, time and internal memory for recording measurements, with the possibility of downloading the data to a computer via USB connection, eliminating transcription errors and ensures greater traceability and compliance.

The MAX line meters have 4 different language settings to choose from (English, Spanish, Italian and Portuguese), making them extremely versatile and easy to understand. In addition, the MAX meters allow user and sample ID to be selected and can be used both in the field and Laboratory, as they can be powered either via a 9V battery or via USB.

All Max line meters come with a carrying case made from sustainable materials and also come with a 2-year guarantee against manufacturing defects and specialised technical support.

  • Good accuracy and immediate results
  • Easy to operate
  • Large, easy to read display
  • Auto shut-off
  • PC communication
  • User ID: 9 options
  • Sample ID: 8 options
  • Date and time setting
  • Internal memory: 1000 Log groups
  • Calibration verification
  • Backlight adjustable
  • Built-in reaction time countdown
  • Error messages
  • Multiple measurements methods
  • Works with liquid and powder reagents
  • Battery status indicator

Description

AK410 MAX Turbidity meter performs digital readout measurements quickly and efficiently using the EPA 180.1 method.

  • Turbidity is one of the most important parameters used to determine the quality of water in various applications, including drinking water, Food and beverage and Environmental.
  • Turbidity of water is an optical property that causes the scattering and absorption of light.
  • The scattering of light passing through a liquid is mainly caused by the suspended solids present.
  • The greater the turbidity, the greater the amount of scattered light.

Specifications:

Measuring range: 0.01 to 9.99 NTU

10.0 to 99.9 NTU

0 to 1000 NTU

Resolution: 0.01 NTU (0.01 to 9.99 NTU)

NTU (10.0 to 99.9 NTU)

1 NTU (100 to 1000 NTU

  • Accuracy: ± 0.2 NTU + 5% reading
  • Calibration verification: 5 points (0, 20, 200, 500, 800 NTU)
  • Sample temperature: 15 to 35 °C
  • Sample volume: 15 mL
  • Light source: Light emitting Diode (LED)
  • Wavelength: 525 nm
  • Measuring cell: Glass Cuvette (Ø 24,9 mm)
  • User ID: 9 options
  • Sample ID: 8 options
  • Internal memory: 1000 log groups
  • PC Communication: USB (type C)
  • Auto power off: After 2 minutes
  • Languages: English, Spanish, Italian, Portuguese
  • Operating Temperature: 0 to 50 °C
  • Operating Humidity: 10 to 90 % RH (non-condensing)
  • Power supply: 9V battery or AC/DC adapter (5Vdc-500mA)
  • Dimensions: 95x80x190 mm (W x H x D)
  • Weight: 300 g (with battery)
  • Method of measurement: based on EPA 180.1

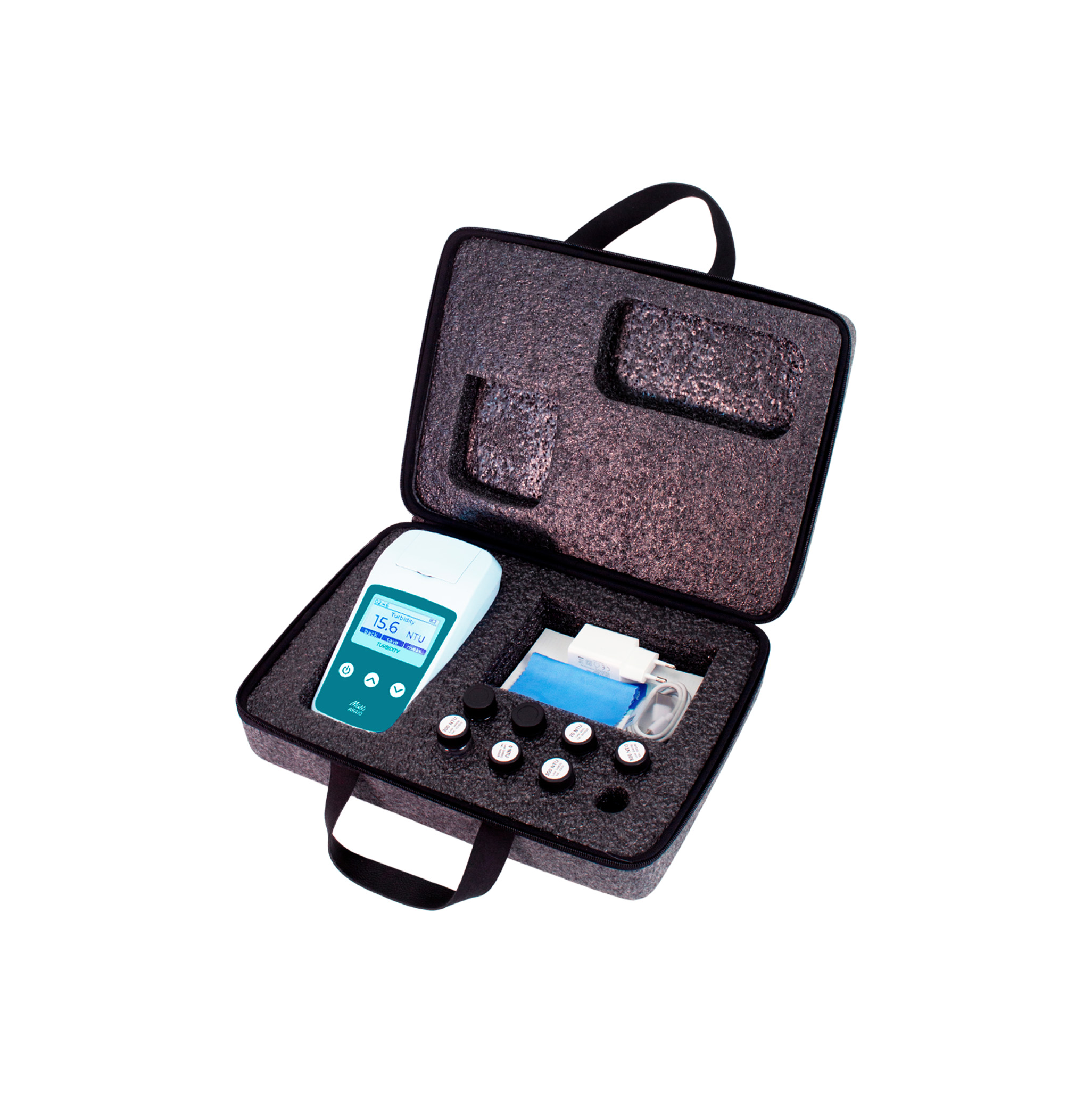

AK410 is supplied complete with:

  • Hard carrying case
  • 2 cuvettes (Ø 24,9 mm x 68mm)
  • Calibration standards Kit (0, 20, 200, 500, 800 NTU) – 5 cuvettes
  • 1 USB cable for power supply and PC communication
  • AC/DC adapter (100-240 Vac / 5Vdc)
  • Tissue to clean cuvette
  • Instruction manual
  • 1 x 9V battery

Optional accessories:

  • AK4411: Turbidity Standard calibration solution 0 NTU, 1 cuvette
  • AK4412: Turbidity Standard calibration solution 20 NTU, 1 cuvette
  • AK4413: Turbidity Standard calibration solution 200 NTU, 1 cuvette
  • AK4414: Turbidity Standard calibration solution 500 NTU, 1 cuvette
  • AK4415: Turbidity Standard calibration solution 800 NTU, 1 cuvette
  • AK4550: Cuvette for MAX photometers (1 pcs.)
