AK115

Name: AK115 Portable EC Meter
Brand: AKSO Instruments
SKU: AK115

Portable EC Meter

Portable EC, TDS, salinity and temperature meter, water-resistant (IP65) with automatic temperature compensation and 5-point calibration.

0.00 to 1999μS/cm / 2.00 to 19.99mS/cmCONDUCTIVITY RANGE

Download datasheet Instruction manual

Key features

5 point automatic calibration
Auto-Ranging feature for EC/TDS
Automatic Temperature Compensation (ATC) for higher accuracy under fluctuating temperatures
Conductivity/TDS/ probe with integrated temperature sensor
Stability indicator
TDS Conversion factor
Hold Function momentarily freezes reading for easy viewing and recording
Auto-Power Off saves battery power after non -use
Self-Diagnostic with message codes for easy troubleshooting

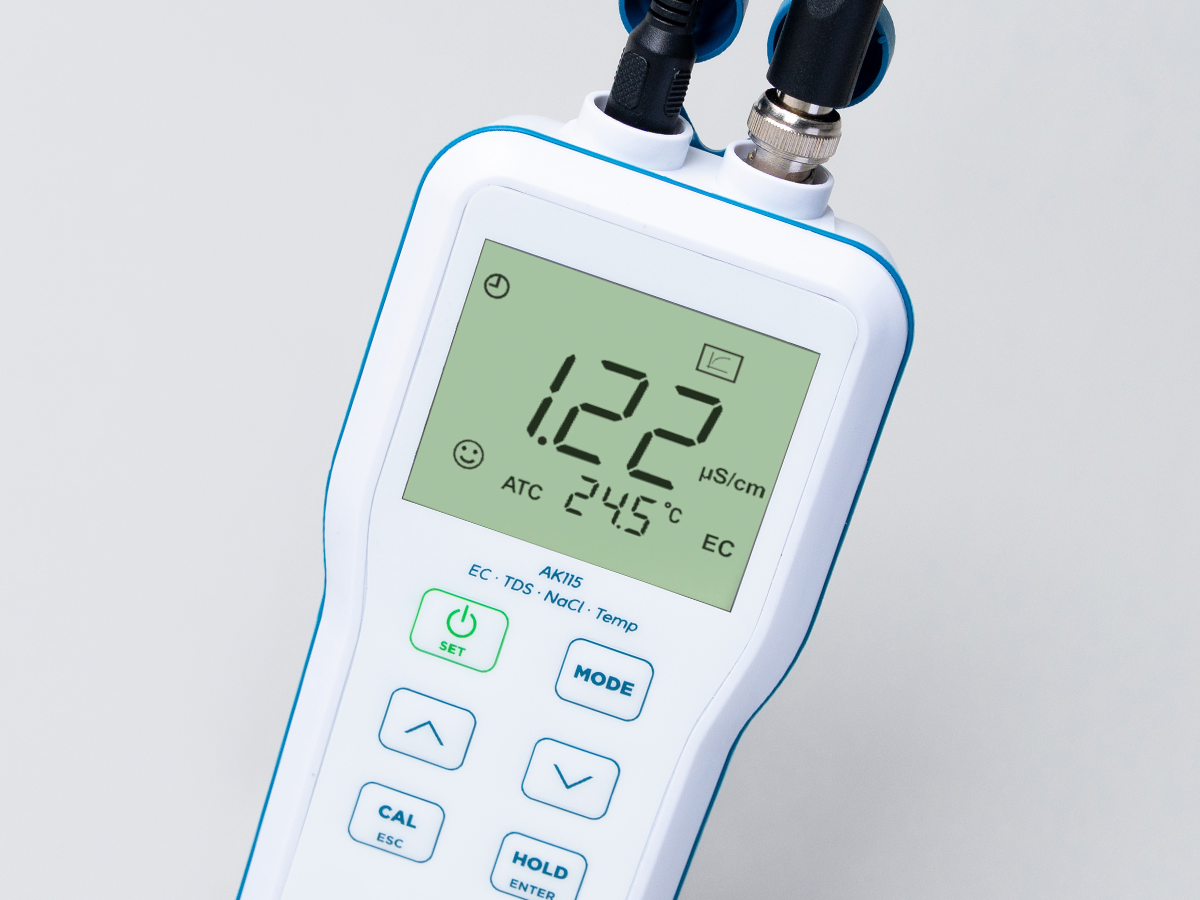

Large custom dual LCD provides optimal viewing
Protective Rubber Boot shields meter from accidental knocks
Splash-proof and dust-resistant rated IP65 –for use under harsh environments

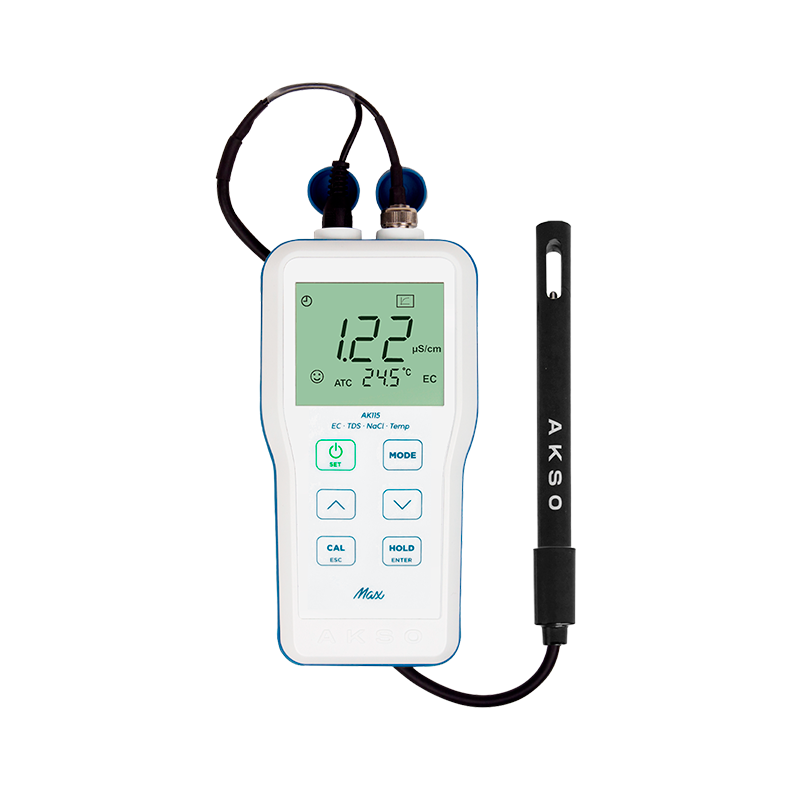

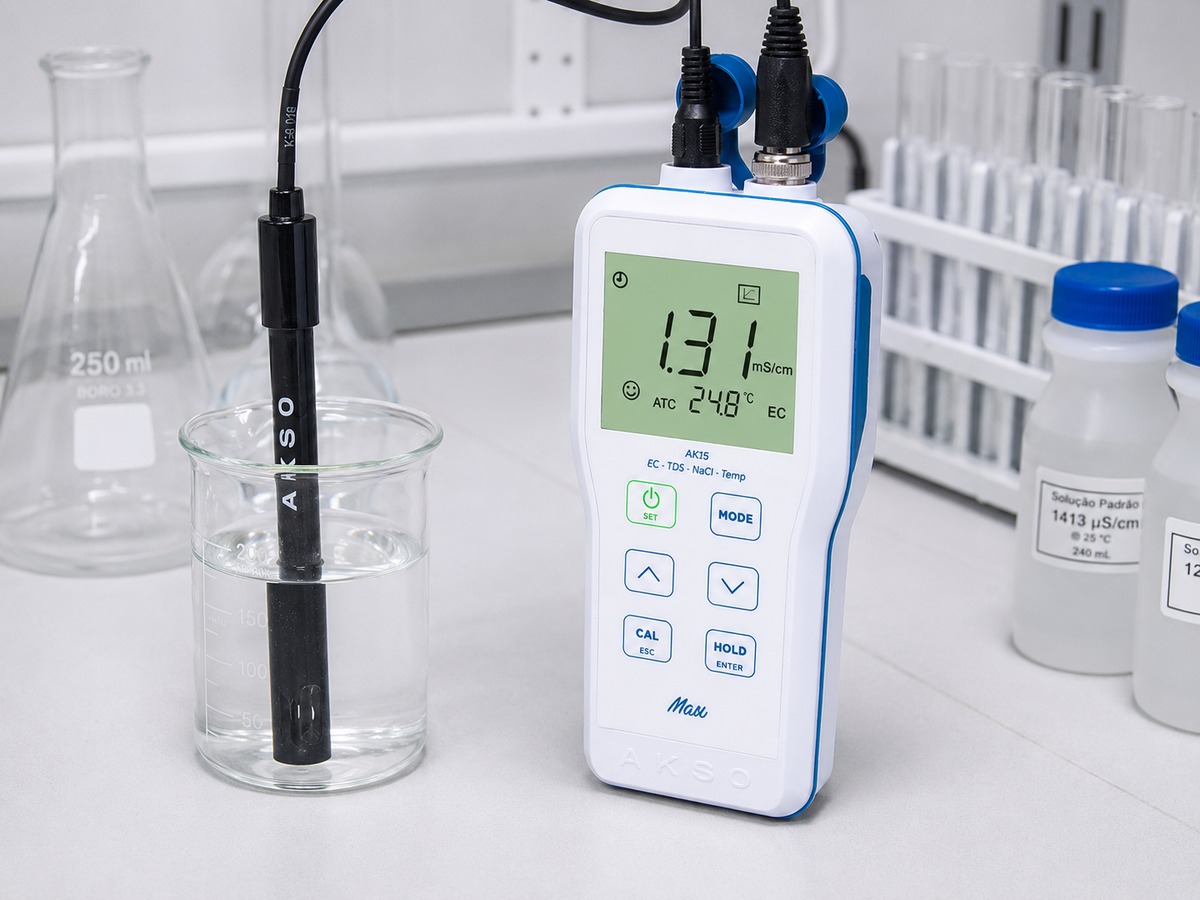

AK115 AK115 Max - Portable EC/TDS/Salinity Meter

Portable, precise, accurate Measurements

The built-in microprocessor enables advanced functions, such as automatic calibration, automatic temperature compensation, self-diagnosis, auto power-off, and low-battery indicator, and improves the response time and accuracy of your measurements.

The MAX portable Conductivity/TDS/Salinity/Temperature meter is water resistant (IP65) and feature a large LCD display that provides simultaneous Conductivity and temperature readings with a resolution of 0.1 µS and an accuracy of ± 2% Full scale. Conductivity probe with integrated temperature sensor. 5 points automatic calibration and extended range up to 150.0 mS.

Ideal for quick, accurate checks in laboratories and schools, the AK115 is also used for analysing water in pools, lithographic processes, boiler and cooling tower, aquaculture, aquarium and nutrients levels in Hydroponics.

Applications

Built for the field

Aquaculture

Monitor water quality in ponds, tanks, and hatcheries for optimal fish and shrimp health.

Laboratory

Bench-grade accuracy for QC, research, and routine laboratory analysis.

Water Treatment

Field testing for municipal and industrial water treatment monitoring.

Hydroponics

Swimming Pools

Aquariums

Keep display and breeding tanks stable — pH, ammonia, nitrite and dissolved oxygen.

Horticulture

Nutrient solution and irrigation water control for greenhouse and field growing — EC, TDS and pH.

Specifications

Parameter	Range	Resolution	Accuracy
Measurement Specifications
Conductivity	0.00 to 19.99 µS/cm	0.01 µS/cm	± (2%FS + 1 digit)
	20.0 to 199.9 µS/cm	0.1 µS/cm	± (2%FS + 1 digit)
	200 to 1999 µS/cm	1 µS/cm	± (2%FS + 1 digit)
	2.00 to 19.99 mS/cm	0.01 mS/cm	± (2%FS + 1 digit)
Salinity	0.00 to 12.00 ppt	0.01 ppt	± (2%FS + 1 digit)
Total Dissolved Solids (TDS)	0.00 to 9.99 ppm	0.01 ppm	± (2%FS + 1 digit)
	10.0 to 99.9 ppm	0.1 ppm	± (2%FS + 1 digit)
	100 to 999 ppm	1 ppm	± (2%FS + 1 digit)
	1.00 to 9.99 ppt	0.01 ppt	± (2%FS + 1 digit)
	10.0 to 19.9 ppt	0.1 ppt	± (2%FS + 1 digit)
Temperature	-5.0 to 100.0 °C	0.1 °C	± 0.5 °C
Resistivity	0.0 to 100.0 MΩ.cm	0.1 MΩ.cm	± (2%FS + 1 digit)

General Specifications
Electrode operating temperature	0 to 80 °C
Memory	100 records
Display backlight	On/Off
Auto power-off	10 minutes
Freezing the reading (HOLD)	Manual/Automatic
Protection rating	IP65
Operating humidity	10 to 90 % RH (non-condensing)
Power supply	9 VDC (1 × 9 V battery)
Dimensions	83 x 175 x 34 mm
Weight	250g
