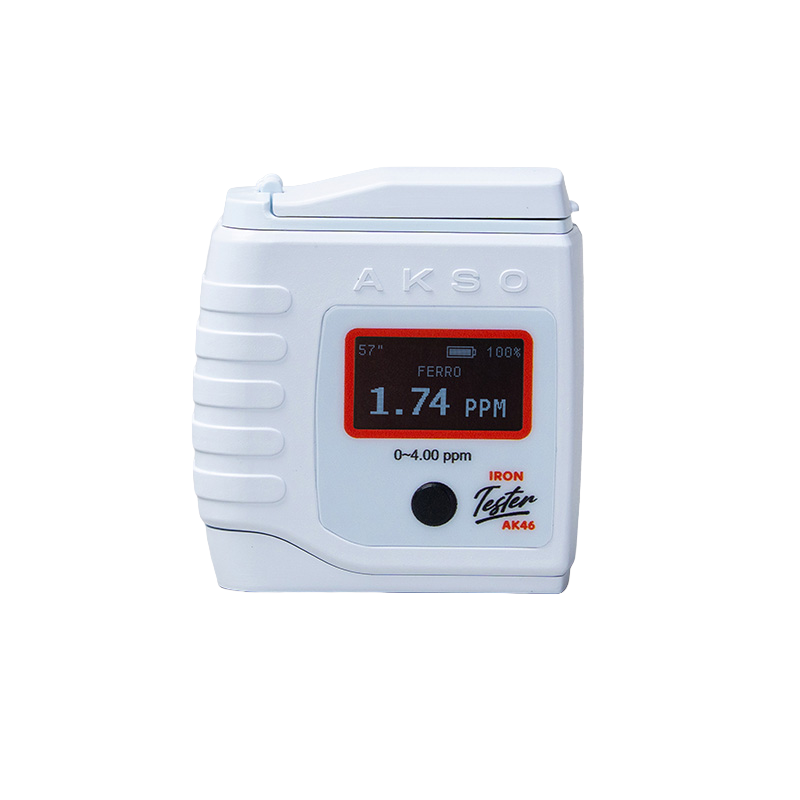

AK46
Portable Iron meter
Handheld photometer for iron with a 0.00 to 4.00 ppm range and one-button operation for immediate, accurate field results.
0.00 to 4.00 ppmIron Range
± 0.04 ppm +2% reading at 25 °CIron Accuracy
Portable Iron meter
Handheld photometer for iron with a 0.00 to 4.00 ppm range and one-button operation for immediate, accurate field results.
The Iron Tester is accurate, affordable, lightweight, yet robust for field use. The tester line of photometers is handy and can be easily transported anywhere you need them to go. The one-button operation makes it simple to use getting immediate and accurate results.
No more struggling to determine colours with Test Kits, our handheld photometers take the hassle out of matching to a colour chart, providing a direct and precise result.
AK46 Iron Tester measures this element that naturally exists in rivers, lakes and underground water.
It can also be released into water from sources such as industrial waste and corrosion of iron pipes.
Iron can be present in water in two forms: the soluble ferrous iron (Fe2+) or the insoluble ferric iron (Fe3+).
Iron is usually present in water in low concentrations and can affect the taste.
Iron is also an indicator of corrosion and is monitored in industrial plants and in water cooling and heating systems.
Applications
Field testing for municipal and industrial water treatment monitoring.
| Measurement Specifications | |||
| Parameter | Range | Resolution | Accuracy |
|---|---|---|---|
| Iron | 0.00 to 4.00 ppm | 0.01 ppm | ± 0.04 ppm +2% reading at 25 °C |
| General Specifications | |
| Operating temperature | 0 to 50 °C |
| Sample temperature | 15 to 35 °C |
| Measuring cell | Glass cuvette Ø 18.8 mm (12 mL) |
| Sample volume | 10 mL |
| Light source | Light Emitting Diodo (LED) |
| Wavelength | 525 nm |
| Display | OLED |
| Languages | English, Spanish, Italian, Portuguese |
| Auto power-off | After 2 minutes |
| Operating humidity | 10 to 90 % RH (non-condensing) |
| Power supply | 9 VDC (1 × 9 V battery) |
| Dimensions | 73 x 77 x 40 mm |
| Weight | 120 g (with battery) |
| Measurement method | Adaptation of the colorimetric method based on the Phenanthroline method described in SMWW – 24th Edition, 3500-Fe. |
