AK1004

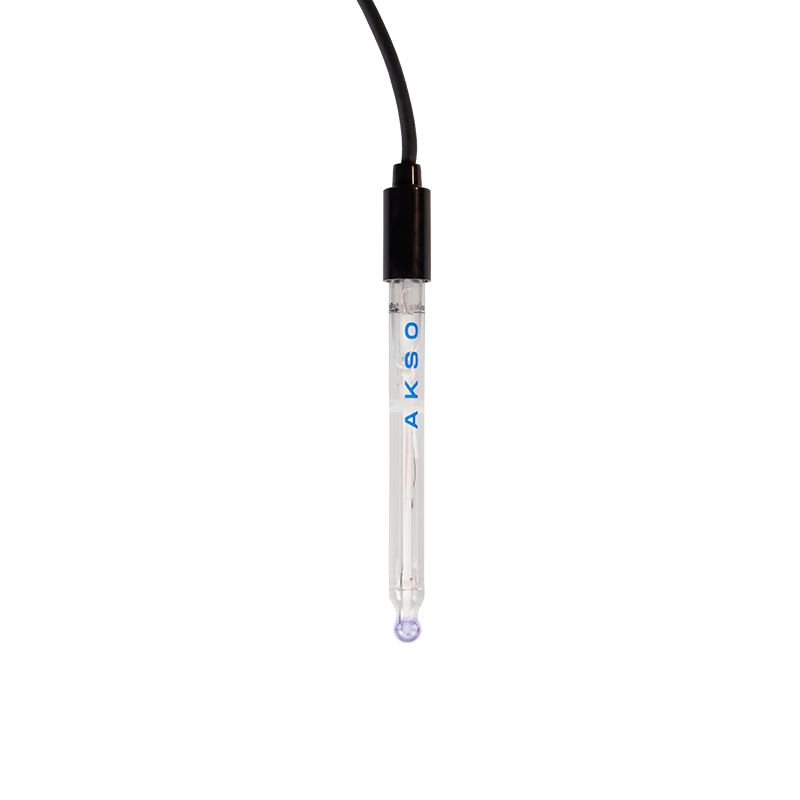

Name: AK1004 Combined pH Electrode with Ceramic Junction
Brand: AKSO Instruments
SKU: AK1004

Combined pH Electrode with Ceramic Junction

Refillable glass pH electrode for laboratory applications, with BNC connector and 1 m cable.

0 to 90 °CTemperature Range

Overview

The AK1004 is a refillable combined glass pH electrode with a ceramic junction, built for accurate laboratory measurements. The refillable reference lets you top up the electrolyte to maintain a stable junction potential and extend working life, while the ceramic junction suits clear aqueous samples and general laboratory use.

Key features

Refillable combined glass pH electrode
Ceramic junction for clear aqueous laboratory samples
Refillable reference for stable readings and longer life
BNC connector with 1 m cable
Standard electrode for the AK130 bench meter; compatible with AKSO pH meters

In detail

Supplied as the standard electrode with the AK130 bench meter and available separately, it connects via a BNC plug on a 1 metre cable and works with AKSO pH meters.

Applications

Built for the field

Laboratory

Bench-grade accuracy for QC, research, and routine laboratory analysis.

Water Treatment

Field testing for municipal and industrial water treatment monitoring.

Specifications

Parameter	Range	Resolution	Accuracy
Measurement Specifications
Temperature	0 to 90 °C	—	—

General Specifications
Junction	Ceramic
Reference electrolyte	Ag/AgCl
Connection	BNC
Body construction	Glass
Weight	65 g
Cable length	1 m

Maintaining your pH electrode

Regular cleaning ensures measurement accuracy and extends electrode life. Follow this procedure periodically.

1
Prepare a small beaker with electrode cleaning solution (pepsin)
2
Leave the electrode tip immersed in the solution for 30 minutes
3
Rinse the electrode in distilled water
4
Remove excess water using a soft paper towel
5
Store the electrode in KCl 3M potassium chloride solution for 1 hour
6
Your tester is now ready for calibration — always use fresh calibration solutions
