AK110

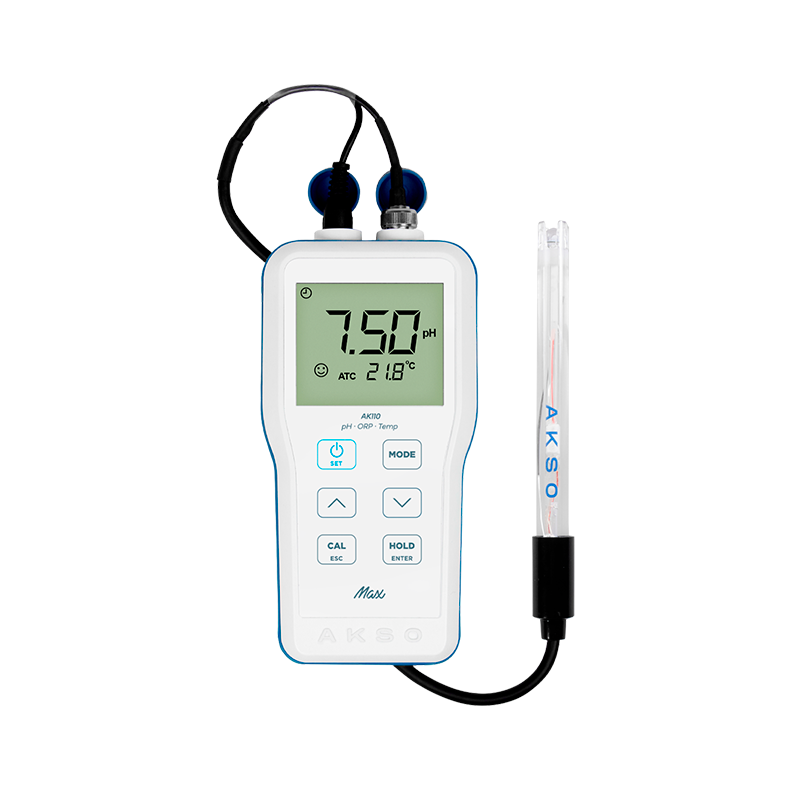

Max - Portable pH, ORP and Temperature Meter
Portable pH, ORP and temperature meter for quick, accurate checks in laboratories, pools, aquaculture, hydroponics and process water.
-2.00 to 16.00 pHpH Range
± 0.01 pHpH Accuracy
Max - Portable pH, ORP and Temperature Meter
Portable pH, ORP and temperature meter for quick, accurate checks in laboratories, pools, aquaculture, hydroponics and process water.
The AK110 pH Max was developed to make pH measurement easier in liquid samples, both in the laboratory and at the point of use. It is suitable for water and wastewater treatment, swimming pools, boilers, cooling towers, aquaculture, aquariums, hydroponics, lithographic processes, educational laboratories, and industrial quality control.
By measuring pH and temperature with one instrument, the AK110 helps users check sample conditions and obtain results directly where the analysis is needed.
The AK110 uses a combined Ag/AgCl electrode with a polycarbonate (PC) body and an integrated temperature sensor. The polycarbonate body is more resistant to impact and less likely to break than a glass body electrode.
This makes the electrode suitable for frequent measurements, regular movement between work areas, and routines where it must be handled several times throughout the day.
The universal BNC connector allows the electrode to be replaced when necessary without replacing the entire meter. It also allows compatible electrodes to be selected according to each application.
With the optional AK1010 electrode, sold separately, the AK110 can also measure oxidation reduction potential. This expands the use of the instrument in water treatment and other testing routines.
The AK110 supports calibration with USA and NIST standards in acidic, neutral, and alkaline ranges. This allows the instrument to be adjusted according to the pH range that is most important for each application.
The electrode performance indicator helps users check the electrode during calibration and identify changes before measurements begin.
Electrode response can change with sample temperature. The AK110 offers automatic or manual temperature compensation from 0 to 80 °C to account for this variation during measurement.
This feature makes it easier to analyze samples at different temperatures and reduces the need for manual corrections during routine use.

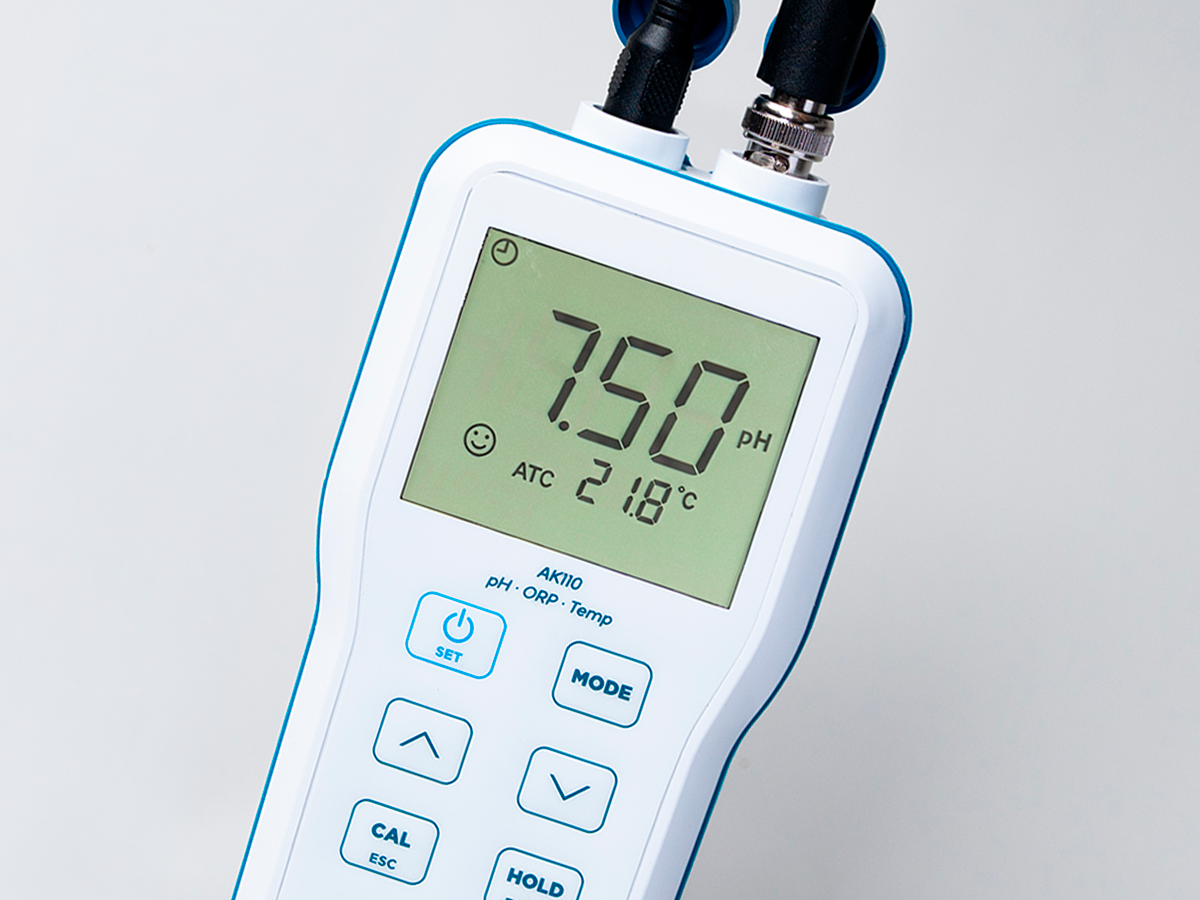

The backlight display shows pH and temperature at the same time, making results easy to read under different lighting conditions. The stability indicator helps users identify when the result is ready to be recorded, while the HOLD function keeps the value on the display for convenient viewing.
The internal memory stores up to 100 results, allowing previous measurements to be reviewed directly on the instrument.

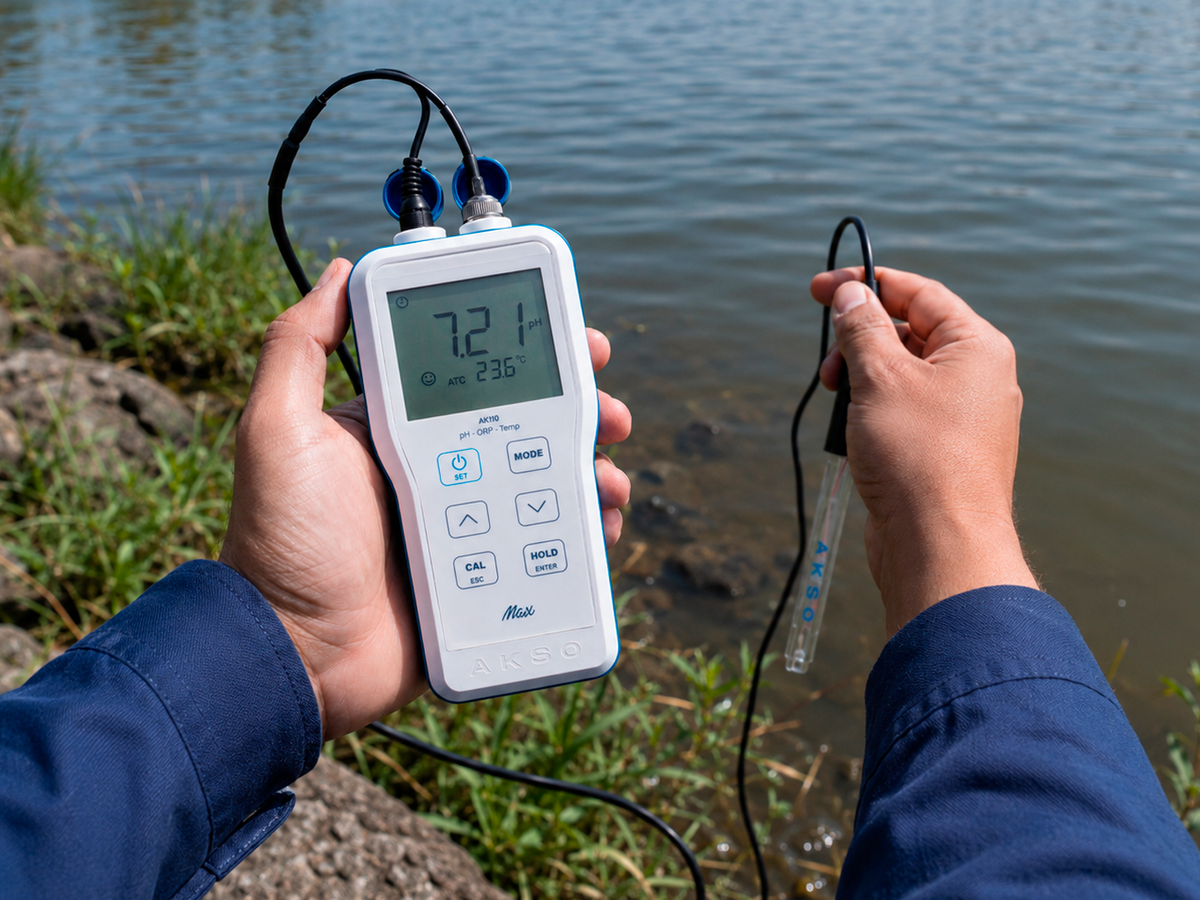

With IP65 protection, battery operation, and a portable design, the AK110 can be used in laboratories, industrial areas, and at different sampling points.
For routines that involve frequent movement or a greater risk of impact, the instrument can be used with an optional rubber protective cover, sold separately. The cover improves grip and adds protection during transport and daily use.
This gives users greater freedom to move between the laboratory, the field, and production areas.

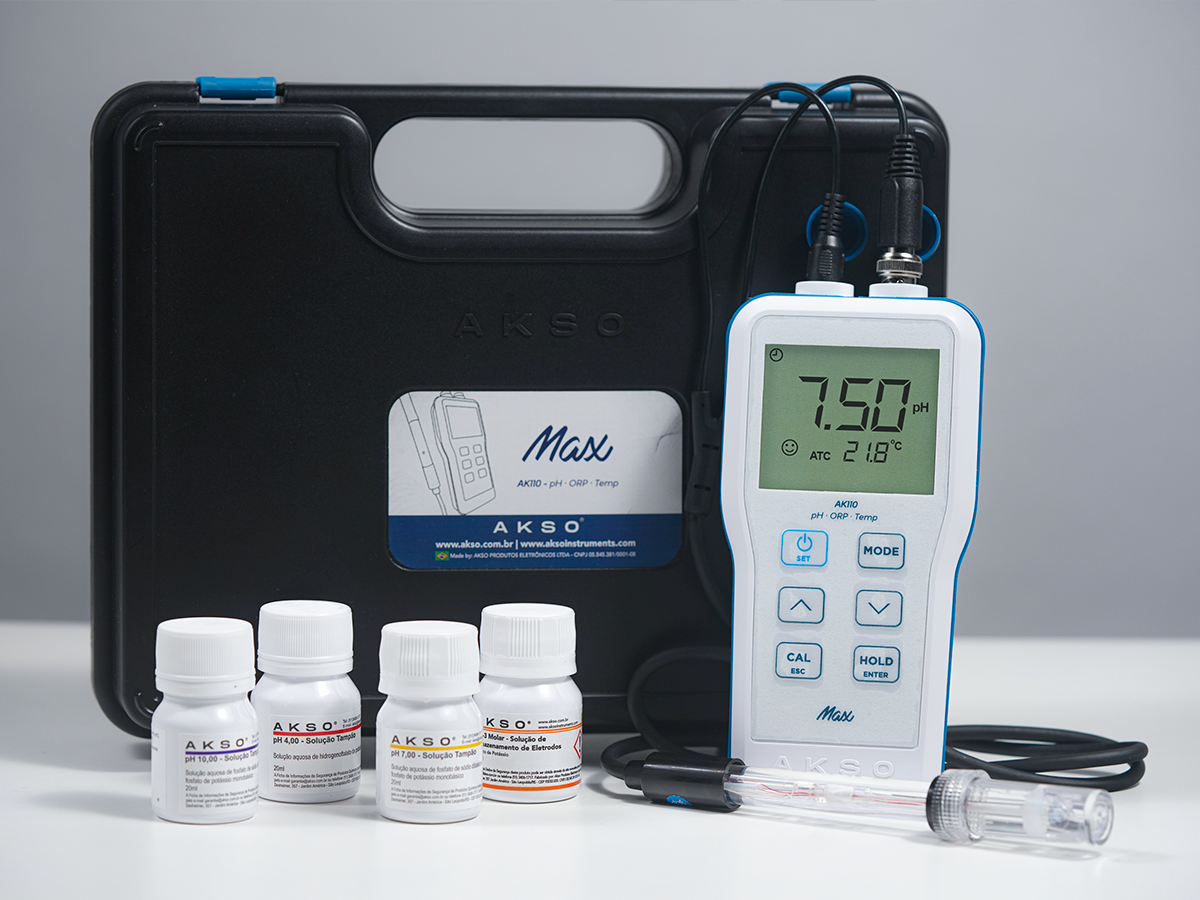

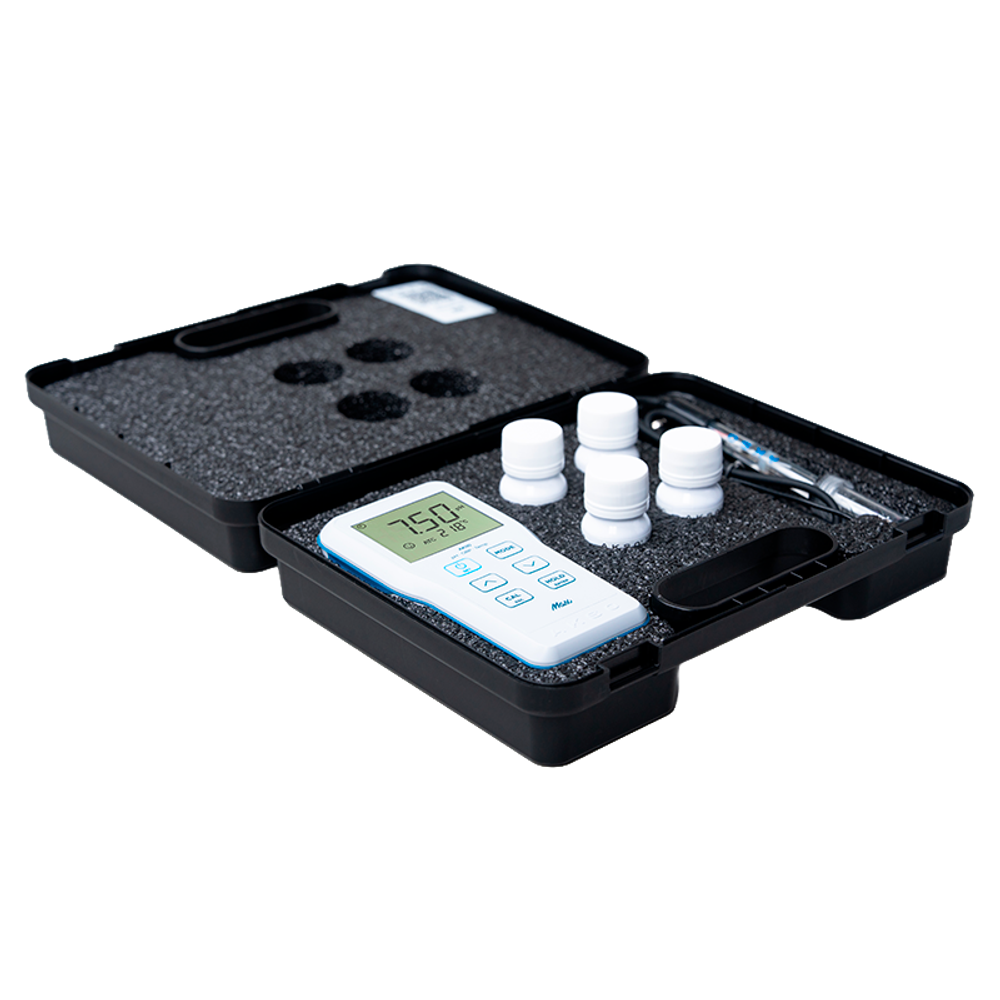

The AK110 comes with a storage and carrying case, a pH electrode with an integrated temperature sensor, pH 4, 7, and 10 calibration solutions, and KCl solution for electrode storage.
The complete set keeps the instrument and accessories organized and protected, with the main items required for calibration, measurement, transport, and electrode care already included.
With a durable polycarbonate electrode, universal BNC connector, calibration at up to three points, and practical features for checking measurement stability, the AK110 pH Max provides a reliable solution for pH measurement in liquid samples.
The result is a more organized testing routine, with the flexibility to measure in different locations and use compatible electrodes according to each application.
Ideal for quick, accurate checks in laboratories and schools, the AK110 is also used for analysing water in pools, lithographic processes, boiler and cooling tower, aquaculture, aquarium and nutrients levels in Hydroponics.
Applications
Monitor water quality in ponds, tanks, and hatcheries for optimal fish and shrimp health.
Bench-grade accuracy for QC, research, and routine laboratory analysis.
Field testing for municipal and industrial water treatment monitoring.
Keep display and breeding tanks stable — pH, ammonia, nitrite and dissolved oxygen.
| Measurement Specifications | |||
| Parameter | Range | Resolution | Accuracy |
|---|---|---|---|
| pH | -2.00 to 16.00 pH | 0.01 pH | ± 0.01 pH |
| ORP / Redox Potential | -1999 to 1999 mV | 1 mV | ± 3 mV |
| Temperature | 0.0 to 80.0 °C | 0.1 °C | ± 0.5 °C |
| General Specifications | |
| Automatic temperature compensation | 0 to 80 °C |
| Manual temperature compensation | 0 to 80 °C |
| Electrode operating temperature | 0 to 50 °C |
| Operating humidity | 10 to 90 % RH (non-condensing) |
| Memory | 100 records |
| Display backlight | On/Off |
| Auto power-off | 10 minutes |
| Freezing the reading (HOLD) | Manual / Automatic |
| Protection rating | IP65 |
| Power supply | 9 VDC (1 × 9 V battery) |
| Dimensions | 83 x 175 x 34 mm |
| Weight | 250 g |
| Calibration points | USA: 4.01 / 7.00 / 10.01 pH · NIST: 4.00 / 6.86 / 9.18 pH |
| Charge indicator | Visual |
Replacement parts, calibration solutions, and maintenance supplies for the AK110.
Regular cleaning ensures measurement accuracy and extends electrode life. Follow this procedure periodically.
Prepare a small beaker with electrode cleaning solution (pepsin)
Leave the electrode tip immersed in the solution for 30 minutes
Rinse the electrode in distilled water
Remove excess water using a soft paper towel
Store the electrode in KCl 3M potassium chloride solution for 1 hour
Your tester is now ready for calibration — always use fresh calibration solutions
